We supply common nails, concrete nails, roofing nails, nails galvanized and stainless steel, for Fastening Materials from concrete, wooden, carboard to asphalt felt, carpet, used in building (wall sheathing, roof decking and flooring), decoration (furniture & upholstery), and etc.

Coil Nails Types

Cnow supplies three types of coiled nails from materials: electro galvanized steel coil nails, hot dipped galvanized coil nails and stainless steel coiled nails.

From the shank types, Cnow coil nails can be divided into three major types as following: ring shank, ring shank and smooth shank. Details as introduced from this page.

Coil Nails with Screwed Shanks:

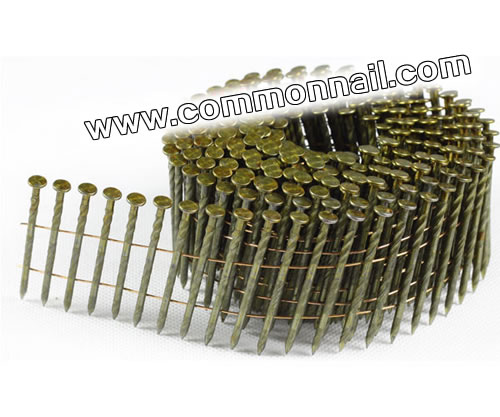

Galv. Steel Nails with Screwed Shanks

HDG (hot dipped) Coil nails with screw shanks are made with 15 degree angle collated with a wire welded. The screw nails offer superior holding power in hard woods.

Application of Screwed Shank Coil Nails: Used for pallet construction, wooden packing cases, flooring, etc.

Nail Wire Diameter:0.099"

Nails Length:1~7/8"

Surface treatment：E.G.,M.G.,HDG,Dacrotize

Material: Mild steel, high-carbon steel, stainless

Point: diamond, chisel, blunt, pointless

Packing quantity/Box:9,000PCS

Common Coil nails specifications including Screw Shank Nails:

Coil nail	Pcs/ctn	PCS*COILS	Weight	Volume
2.1*25	16000	400*40	11.25	430*300*125
2.1*28	16000	400*40	12.60	430*300*140
2.1*30	16000	400*40	13.51	430*300*145
2.1*32	16000	400*40	14.41	430*300*153
2.1*35	16000	400*40	15.76	430*300*165
2.1*38	16000	400*40	17.11	430*300*175
2.1*40	16000	400*40	18.01	430*300*185
2.1*45	16000	400*40	20.26	430*300*205
2.3*40	9000	300*30	12.15	430*300*145
2.3*45	9000	300*30	13.67	430*300*160
2.3*50	9000	300*30	15.19	430*300*166
2.5*40	9000	300*30	14.36	460*310*145
2.5*45	9000	300*30	16.15	460*310*160
2.5*50	9000	300*30	17.94	460*310*170
2.5*57	9000	300*30	20.46	460*310*195
2.5*60	9000	300*30	21.53	460*310*205
2.5*64	9000	300*30	22.97	460*310*215
2.5*70	9000	300*30	25.12	460*310*235
2.87*60	5000	250*20	15.77	460*310*140
2.87*70	5000	250*20	18.39	460*310*160
2.87*75	5000	250*20	19.71	460*310*170
2.87*80	5000	250*20	21.02	460*310*180
2.87*83	5000	250*20	21.81	460*310*186
3.05*75	4000	200*20	17.80	430*300*170
3.05*80	4000	200*20	18.99	430*300*180
3.05*83	4000	200*20	19.70	430*300*186
3.05*90	4000	200*20	21.37	430*300*200
3.1*80	4000	200*20	19.62	430*300*160
3.1*83	4000	200*20	20.36	430*300*180
3.1*90	4000	200*20	22.07	430*300*185
3.33*100	2000	200*10	14.15	430*300*200
3.5*100	2000	200*10	15.63	460*310*115
3.5*110	2000	200*10	17.19	460*310*115
3.8*100	1500	150*10	13.82	460*310*125
3.8*110	1500	150*10	15.20	460*310*115
3.8*120	1500	150*10	16.58	460*310*125
3.8*130	1500	150*10	17.96	460*310*145

Smooth Shank Coil Nails:

Smooth shank coil nails are the most popular nail types, with the economic cost due to less cost of material. Widely used in plywood application.
Smooth Shank Nails Diameter:0.113-0.15"
Smooth Shank Nail Length:1-3/4"~3-1/2"(45mm-90mm)
Surface treatment: E.G.,M.G.,HDG,Dacrotized
Material: mild steel, high-carbon steel, stainless

Electro Galvanized Steel Coil Nails with Smooth Shanks	Common Nails Coils

Ring Shank Coil Nails
Ring shank wire nails are used extensively in post-frame construction due to their superior performance. Compared with the smooth shank coil nails with the same diameter, the ring shank nails have a doubled withdrawal resistance.
Nail Diameter:0.113-0.15"
Nails Length:1-3/4"~3-1/2"(45mm-90mm)
Surface treatment: E.G.,M.G.,HDG
Material: mild steel, high-carbon steel, stainless steel
Please find below the ring-shank coil nails photos:

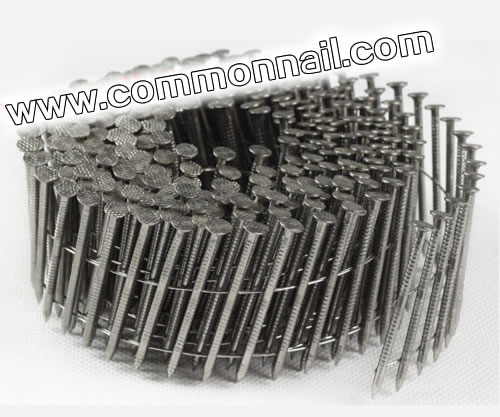

Stainless Steel Ring Shank Coils Nails, Round Wire Nails for Construction

304/316 Stainless Steel Ring Shank Coils Nails, Round Wire Nails for Construction

China Cnow Common Nail Factory

We regard quality as base for the development of company, we have built our quality control system to guarantee good quality products and satisfactory services are provided to our customer.
Special size and specification are available according to customers' requirement.
