We supply common nails, concrete nails, roofing nails, nails galvanized and stainless steel, for Fastening Materials from concrete, wooden, carboard to asphalt felt, carpet, used in building (wall sheathing, roof decking and flooring), decoration (furniture & upholstery), and etc.

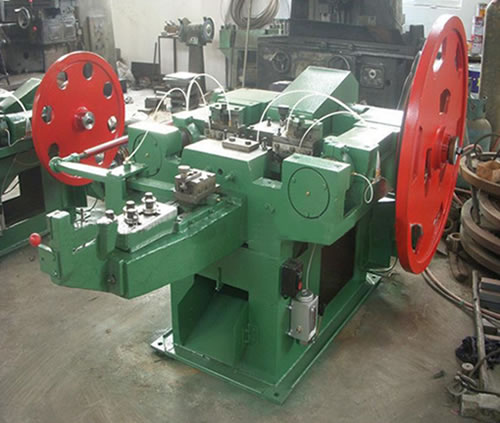

Coil Screw Nails Making Machine

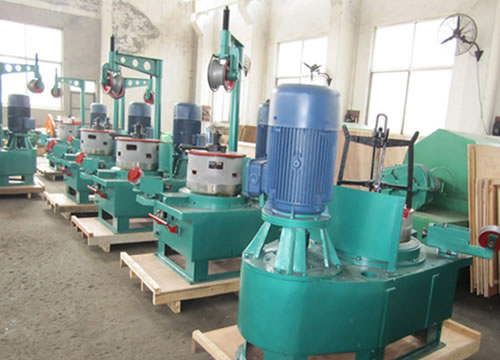

Cnow supplies wire drawing machine, wire nails making machine, nails polishing machine, rolling machine and coiling devices of nails.

Generally there are five steps for coiled screw nails production:
Wire drawing for nails;
Nails making;
Polishing of nails;
Rolling of nails rolling;
Coiling of nails.
We supply related machines and devices for each steps to fulfill the production.

Features of Cnow coiled nails (screwed shanks) making machines:
1 .Both iron wire and the new steel rod can be used to make nails.
2 .This nails making machine can feed the materials automatically.
3 .This nails machine has the features of high speed, low noise, less impact.
4. All the main components (shaft, cams and gear) are made of quality steel.
5. The coiled wire nails made by the machine are straight, the point of the nails will be sharp and symmetrical, the nails cap will be round, every nail will be perfect.

Parameters of Cnow Coiled Screw Nails Making machines:

Technica parameters	unit	Z94 - 5c	Z94 - 4C	Z94 - 3C	Z94 - 2C	Z94 - 1C
Max. diameter	mm	6	4.5	3.1	2.8	1.6
Min. diameter	mm	2.5	2.8	1.8	1.2	0.9
Max. length	mm	150	100	75	50	25
Min. length	mm	50	50	30	16	9
Projected output	pcs / min	180	280	300	320	460
Motor power	kw	5.5	4	3	2.2	1.5
weight	kg	2500	2000	1800	1450	1200
Overall dimension	mm	2600 * 1650 * 1750	2200 * 1600 * 1650	2000 * 1400 * 1400	1700 * 1300 * 1400	1500 * 1300 * 1200

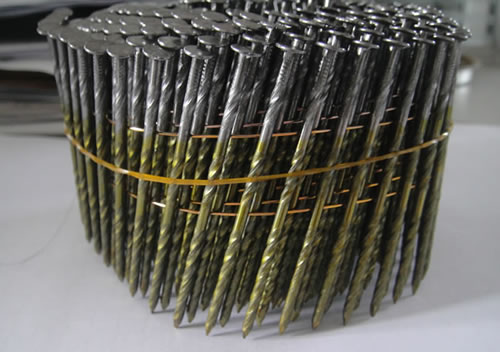

Popular screwed coil nails specification our machine is used to produce:
Commodity: Coil Screwed Nails or coil nails with screwed shanks
Nails Diameter: 2.1 mm to 3.3 mm
 Nails length: from 30 mm to 130 mm
 The degree of all coil nails: 16 degree
Pitch:
 The pitch is 8mm for the coil nails with diameter ranging from 2.3mm to 2.8mm.
 The pitch is 6.8mm for the coil nails with diameter ranging from 2.1mm and 2.2mm
 Coils: About 300 nails to 400 nails in each coil

Surface coating of the coiled nails: White for the half of nails and other half in yellow.

China Cnow Common Nail Factory

We regard quality as base for the development of company, we have built our quality control system to guarantee good quality products and satisfactory services are provided to our customer.
Special size and specification are available according to customers' requirement.
